Small Diameter Pipeline Scanner (PLS-G)
This scanner is light weight and easy to handle on small diameter pipelines. It inspects pipeline diameters from 2 1/4" (57mm) to 20" (508mm) with a scanning speed of 100mm/sec. It comes with an integrated array transducer set and DC motor control.
|
|
Large Diameter Pipeline Scanner (PLS-B)
The large diameter pipeline scanner inspects pipeline diameters from
20" (508mm) to 80" (2030mm) with a scanning speed of 100mm/sec. It comes with an
integrated or discrete array transducer set, and DC motor control.
|
|

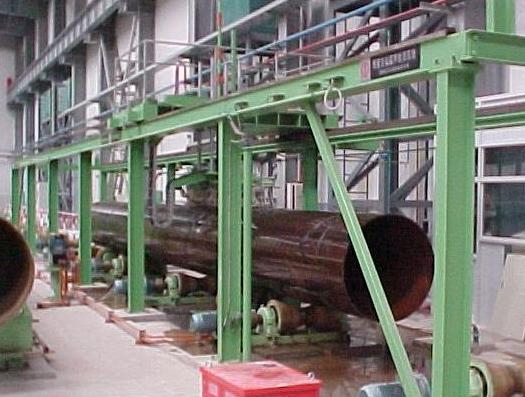

Gantry Scanning System
This system is used to inspect large to medium scale parts, such as
large welding pipes, aircraft composite parts, etc. Depending on the
size of the object to be inspected, this system can be used with
either track or wheel transports.
|
|

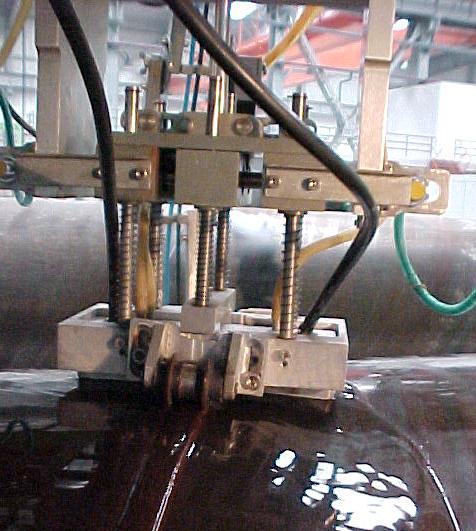

Automatic Tracking Scanner
This system contains an automatic tracking device which is suitable for
straight weld or spiral weld pipeline inspection. The system comes with
an integrated array transducer set and scans at speeds up to 150mm/sec.
|
