Coaxial Cable, SMA to TNC, RG316 double shielded, 3 foot, 50 ohm
[SAT-316DS-3]
Other lengths for this cable
Other connector and cable combinations		 $40.75
Available for order

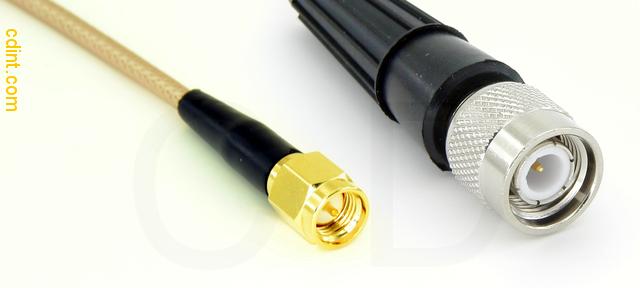

SAT-316DS-3 is a RG316 double shielded 3 foot 50 ohm (0.91 meter) coax cable assembly with a SMA connector on one end and a TNC connector on the other end.

About 50 ohm cable assemblies

This cable assembly has a characteristic impedance of 50 ohms. 50 ohm coax cable, connectors, and adapters are commonly used in GPS and wifi (802.11 wireless LAN) antennas, ham transceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

RG316 double shielded Specifications

The following are nominal values; if you have exact requirements that need to be met for a given application, please contact us.

Impedance50 ohms
Inner Conductor Diameter0.45 mm
Dielectric Diameter1.56 mm
Shield Diameter2.48 mm
Capacitance96.4 pF/meter (29.4 pF/foot)
Minimum Operating Temperature-55 C (-67.0 F)
Maximum Operating Temperature200 C (392.0 F)
Jacket Diameter2.93 mm
Jacket MaterialFEP
Corestranded
RelatedRG-316

We hi-pot test our cable assemblies for high-voltage breakdown between core and braid. See About Hi-Pot Testing for why this might matter to you, particularly for physics or NDT applications. Caution: We make no claims as to the safety of this product for high-voltage use. These voltages can kill. Do not handle or approach any cable or conductor carrying high voltage; this includes insulated cables, nearby metal parts, water, and other conductive materials. Engineering and design for safety in your application are your responsibility.

Customization and Ordering

  • We make our own cable assemblies. If you need a connector type that you don't see here, or if you have custom requirements, feel free to contact us.
  • RoHS compliance available upon request.
  • low noise RG174 cable available -- see Cables/RG174 low noise.
  • If you need a quantity discount quote, please contact us. We're always happy to work with distributors.

All prices are subject to change without notice.

Actual product color, plating, and other details may differ from photo images depending on upstream component availability.
