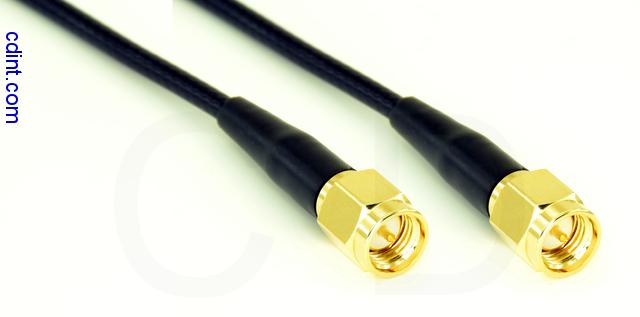

SASA-174-40 is a RG174 40 foot 50 ohm (12.2 meter) coax cable assembly with
a SMA connector
on one end and
a SMA connector
on the other
end.
About 50 ohm cable assemblies
This cable assembly has a
characteristic
impedance of 50 ohms.
50 ohm coax cable, connectors, and adapters are commonly used in GPS
and wifi (802.11 wireless LAN) antennas, ham transceivers, and other
radio frequency (RF) analog and digital signaling, microwave, radar,
hi-fidelity professional audio, non-destructive testing (NDT), oil and
petroleum production, ultrasonic transducers, accelerometers, strain
gauges, and some professional video applications.
RG174 Specifications
The following are nominal values; if you have exact requirements that
need to be met for a given application, please contact us.
Impedance | 50 ohms |
Inner Conductor Diameter | 0.48 mm |
Dielectric Diameter | 1.52 mm |
Shield Diameter | 2.23 mm |
Capacitance | 100.0 pF/meter (30.5 pF/foot) |
Minimum Operating Temperature | -40 C (-40.0 F) |
Maximum Operating Temperature | 75 C (167.0 F) |
Jacket Diameter | 2.79 mm |
Jacket Material | PVC |
Velocity Ratio | 66% |
Core | stranded |
Related | RG-174 RG174A/U RG-174A/U |
We hi-pot test our cable assemblies for high-voltage breakdown
between core and braid. See About Hi-Pot
Testing for why this might matter to you, particularly for
physics or NDT applications. Caution: We make no claims as to the
safety of this product for high-voltage use. These voltages can
kill. Do not handle or approach any cable or conductor carrying
high voltage; this includes insulated cables, nearby metal parts,
water, and other conductive materials. Engineering and design for
safety in your application are your responsibility.
Customization and Ordering
- We make our own cable assemblies. If you need a connector
type that you don't see here, or if you have custom requirements,
feel free to contact us.
- RoHS compliance available upon request.
- low noise RG174 cable available -- see
Cables/RG174 low noise.
- If you need a quantity discount quote,
please contact us. We're
always happy to work with distributors.
