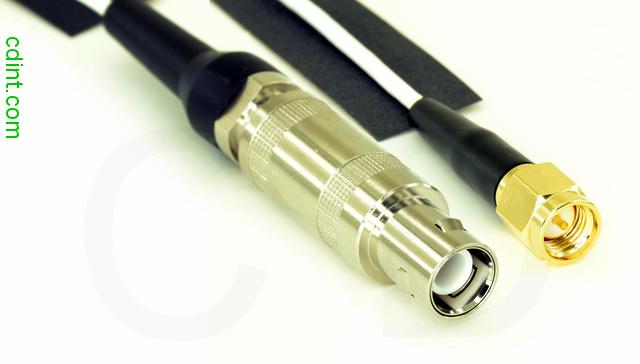

L1SA-196LN-6 is a RG196 low noise 6 foot 50 ohm (1.83 meter) coax cable assembly with
a L1 (Lemo 1 compatible) connector
on one end and
a SMA connector
on the other
end.
|
Circular Connector Details
- Circular connectors, also called "push-pull" or
"quick connect/disconnect", are commonly used in
non-destructive testing (NDT), physics, and aerospace,
on transducers, flaw detectors, and other
applications.
- This style of connector was pioneered several
decades ago by the Swiss connector manufacturer LEMO.
Because of this history, practitioners in the
industries that use this connector style still tend to
call this a "LEMO connector", even though there are
now multiple manufacturers making compatible
connectors. "LEMO" is a registered trademark of LEMO
USA.
- We source our connectors from multiple vendors.
The connector we provide to you may be made by LEMO, or
may be a compatible model from an aftermarket
manufacturer. If you have a preference, please feel
free to contact us for
a quote.
-
Our circular connectors come in two different sizes.
The L1 connectors have a diameter of roughly 0.5".
If you are looking
for the smaller 0.25" diameter NIM/CAMAC connector, those are over here.
|
About 50 ohm cable assemblies
This cable assembly has a
characteristic
impedance of 50 ohms.
50 ohm coax cable, connectors, and adapters are commonly used in GPS
and wifi (802.11 wireless LAN) antennas, ham transceivers, and other
radio frequency (RF) analog and digital signaling, microwave, radar,
hi-fidelity professional audio, non-destructive testing (NDT), oil and
petroleum production, ultrasonic transducers, accelerometers, strain
gauges, and some professional video applications.
About Low Noise Cable
This is a "low noise" cable, with a carbon-impregnated conductive
PTFE
layer added around the
PTFE
dielectric; this layer helps to increase shielding, dissipate static
charge, and reduce mechanically-generated electrical noise as the
cable is flexed. This extra protection is useful for long cable runs,
low-voltage signals, high-vibration environments, in applications
including aerospace, automotive, NDT, strain gauges and
accelerometers, and extremely high fidelity professional audio
production.
Low noise cable is generally not recommended for RF use. In our own
testing, we see characteristics which differ from ordinary cable,
including phase delay and impedance variations with frequency. In the
field, we've seen mixed results in the GHz range; low noise cables
seem to provide the best results at signal frequencies in the low MHz
or lower. Ultrasonic NDT, for example, uses low-noise cable with
signals as high as 100 MHz, but in transient pulse trains, where phase
delay is less critical. The results you get will depend on the
application, and as always you will want to do your own testing before
ordering large quantities.
RG196 low noise Specifications
The following are nominal values; if you have exact requirements that
need to be met for a given application, please contact us.
Impedance | 50 ohms |
Capacitance | 107.3 pF/meter (32.7 pF/foot) |
Minimum Operating Temperature | -55 C (-67.0 F) |
Maximum Operating Temperature | 250 C (482.0 F) |
Jacket Diameter | 1.9 mm |
Jacket Material | PTFE |
Core | stranded |
Related | RG-196 |
We hi-pot test our cable assemblies for high-voltage breakdown
between core and braid. See About Hi-Pot
Testing for why this might matter to you, particularly for
physics or NDT applications. Caution: We make no claims as to the
safety of this product for high-voltage use. These voltages can
kill. Do not handle or approach any cable or conductor carrying
high voltage; this includes insulated cables, nearby metal parts,
water, and other conductive materials. Engineering and design for
safety in your application are your responsibility.
Customization and Ordering
- We make our own cable assemblies. If you need a connector
type that you don't see here, or if you have custom requirements,
feel free to contact us.
- RoHS compliance available upon request.
- If you need a quantity discount quote,
please contact us. We're
always happy to work with distributors.
