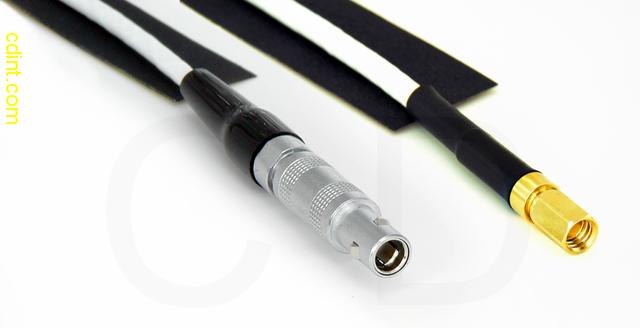

L00S2C-188LN-32 is a RG188 low noise 32 foot 50 ohm (9.76 meter) coax cable assembly with a L00 (Lemo 00 compatible) connector on one end and a SSMC connector on the other end.

Circular Connector Details Circular connectors, also called "push-pull" or "quick connect/disconnect", are commonly used in non-destructive testing (NDT), physics, and aerospace, on transducers, flaw detectors, and other applications. This style of connector was pioneered several decades ago by the Swiss connector manufacturer LEMO. Because of this history, practitioners in the industries that use this connector style still tend to call this a "LEMO connector", even though there are now multiple manufacturers making compatible connectors. "LEMO" is a registered trademark of LEMO USA. We source our connectors from multiple vendors. The connector we provide to you may be made by LEMO, or may be a compatible model from an aftermarket manufacturer. If you have a preference, please feel free to contact us for a quote. Our circular connectors come in two different sizes. The L00 connectors have a diameter of roughly 0.25", and are often used in physics and engineering applications for interconnection between NIM/CAMAC modules. If you are looking for the larger 0.5" diameter connector, those are over here. For further reference, see: An Introduction to NIM NIM and CAMAC Standards for Modular Instrumentation Standard NIM Instrumentation System (DOE/ER-0457T) NIM on Wikipedia CAMAC on Wikipedia LEMO on Wikipedia

About 50 ohm cable assemblies

About Low Noise Cable

Low noise cable is generally not recommended for RF use. In our own testing, we see characteristics which differ from ordinary cable, including phase delay and impedance variations with frequency. In the field, we've seen mixed results in the GHz range; low noise cables seem to provide the best results at signal frequencies in the low MHz or lower. Ultrasonic NDT, for example, uses low-noise cable with signals as high as 100 MHz, but in transient pulse trains, where phase delay is less critical. The results you get will depend on the application, and as always you will want to do your own testing before ordering large quantities.

RG188 low noise Specifications

Impedance	50 ohms
Capacitance	105.3 pF/meter (32.1 pF/foot)
Minimum Operating Temperature	-55 C (-67.0 F)
Maximum Operating Temperature	250 C (482.0 F)
Jacket Diameter	2.6 mm
Jacket Material	PTFE
Velocity Ratio	67%
Core	stranded
Related	RG-188

We hi-pot test our cable assemblies for high-voltage breakdown between core and braid. See About Hi-Pot Testing for why this might matter to you, particularly for physics or NDT applications. Caution: We make no claims as to the safety of this product for high-voltage use. These voltages can kill. Do not handle or approach any cable or conductor carrying high voltage; this includes insulated cables, nearby metal parts, water, and other conductive materials. Engineering and design for safety in your application are your responsibility.

Customization and Ordering

• We make our own cable assemblies. If you need a connector type that you don't see here, or if you have custom requirements, feel free to contact us.
• RoHS compliance available upon request.
• If you need a quantity discount quote, please contact us. We're always happy to work with distributors.

All prices are subject to change without notice.

Actual product color, plating, and other details may differ from photo images depending on upstream component availability.
