CB-174D-50: Bulk Coaxial Cable, RG174 dual, 50 foot, 50 ohm

Bulk Coaxial Cable, RG174 dual, 50 foot, 50 ohm [CB-174D-50]		$72.73 Available for order

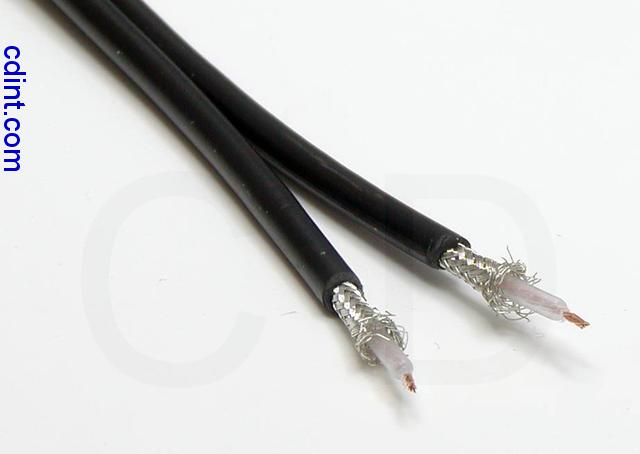

Bulk Coaxial Cable, RG174 dual, 50 foot, 50 ohm

Click to enlarge

CB-174D-50 is a 50 foot (15.24 meter) roll of RG174 dual 50 ohm stranded core cable. 50 ohm coax cable, connectors, and adapters are commonly used in GPS and wifi (802.11 wireless LAN) antennas, ham transceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

RG174 dual Specifications

The following are nominal values; if you have exact requirements that need to be met for a given application, please contact us.

Impedance 50 ohms

Inner Conductor Diameter 0.48 mm

Dielectric Diameter 1.52 mm

Shield Diameter 2.23 mm

Capacitance 109.2 pF/meter (33.3 pF/foot)

Minimum Operating Temperature -40 C (-40.0 F)

Maximum Operating Temperature 75 C (167.0 F)

Jacket Diameter 2.79 mm

Jacket Material PVC

Velocity Ratio 66%

Core stranded

Related RG-174 RG174A/U RG-174A/U

This product was added to our catalog on Thursday 25 January, 2007.
