CB-174-500: Bulk Coaxial Cable, RG174, 500 foot, 50 ohm

Bulk Coaxial Cable, RG174, 500 foot, 50 ohm [CB-174-500]		$240.21 Available for order

Bulk Coaxial Cable, RG174, 500 foot, 50 ohm

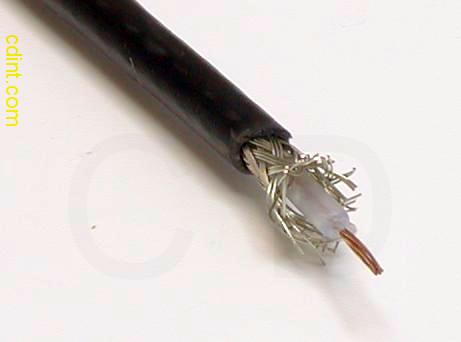

Click to enlarge

CB-174-500 is a 500 foot (152.44 meter) roll of RG174 50 ohm stranded core cable. 50 ohm coax cable, connectors, and adapters are commonly used in GPS and wifi (802.11 wireless LAN) antennas, ham transceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

RG174 Specifications

The following are nominal values; if you have exact requirements that need to be met for a given application, please contact us.

Impedance 50 ohms

Inner Conductor Diameter 0.48 mm

Dielectric Diameter 1.52 mm

Shield Diameter 2.23 mm

Capacitance 100.0 pF/meter (30.5 pF/foot)

Minimum Operating Temperature -40 C (-40.0 F)

Maximum Operating Temperature 75 C (167.0 F)

Jacket Diameter 2.79 mm

Jacket Material PVC

Velocity Ratio 66%

Core stranded

Related RG-174 RG174A/U RG-174A/U

This product was added to our catalog on Thursday 25 January, 2007.
