Coaxial Cable, BNC to L1 (Lemo 1 compatible), RG316 double shielded, 20 foot, 50 ohm
[BL1-316DS-20]
Other lengths for this cable
Other connector and cable combinations		 $95.42
Available for order

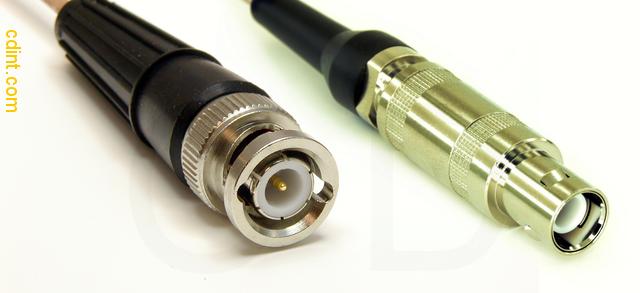

BL1-316DS-20 is a RG316 double shielded 20 foot 50 ohm (6.1 meter) coax cable assembly with a BNC connector on one end and a L1 (Lemo 1 compatible) connector on the other end.

Circular Connector Details

  • Circular connectors, also called "push-pull" or "quick connect/disconnect", are commonly used in non-destructive testing (NDT), physics, and aerospace, on transducers, flaw detectors, and other applications.
  • This style of connector was pioneered several decades ago by the Swiss connector manufacturer LEMO. Because of this history, practitioners in the industries that use this connector style still tend to call this a "LEMO connector", even though there are now multiple manufacturers making compatible connectors. "LEMO" is a registered trademark of LEMO USA.
  • We source our connectors from multiple vendors. The connector we provide to you may be made by LEMO, or may be a compatible model from an aftermarket manufacturer. If you have a preference, please feel free to contact us for a quote.
  • Our circular connectors come in two different sizes. The L1 connectors have a diameter of roughly 0.5". If you are looking for the smaller 0.25" diameter NIM/CAMAC connector, those are over here.

About 50 ohm cable assemblies

This cable assembly has a characteristic impedance of 50 ohms. 50 ohm coax cable, connectors, and adapters are commonly used in GPS and wifi (802.11 wireless LAN) antennas, ham transceivers, and other radio frequency (RF) analog and digital signaling, microwave, radar, hi-fidelity professional audio, non-destructive testing (NDT), oil and petroleum production, ultrasonic transducers, accelerometers, strain gauges, and some professional video applications.

RG316 double shielded Specifications

The following are nominal values; if you have exact requirements that need to be met for a given application, please contact us.

Impedance50 ohms
Inner Conductor Diameter0.45 mm
Dielectric Diameter1.56 mm
Shield Diameter2.48 mm
Capacitance96.4 pF/meter (29.4 pF/foot)
Minimum Operating Temperature-55 C (-67.0 F)
Maximum Operating Temperature200 C (392.0 F)
Jacket Diameter2.93 mm
Jacket MaterialFEP
Corestranded
RelatedRG-316

We hi-pot test our cable assemblies for high-voltage breakdown between core and braid. See About Hi-Pot Testing for why this might matter to you, particularly for physics or NDT applications. Caution: We make no claims as to the safety of this product for high-voltage use. These voltages can kill. Do not handle or approach any cable or conductor carrying high voltage; this includes insulated cables, nearby metal parts, water, and other conductive materials. Engineering and design for safety in your application are your responsibility.

Customization and Ordering

  • We make our own cable assemblies. If you need a connector type that you don't see here, or if you have custom requirements, feel free to contact us.
  • RoHS compliance available upon request.
  • low noise RG174 cable available -- see Cables/RG174 low noise.
  • If you need a quantity discount quote, please contact us. We're always happy to work with distributors.

All prices are subject to change without notice.

Actual product color, plating, and other details may differ from photo images depending on upstream component availability.
