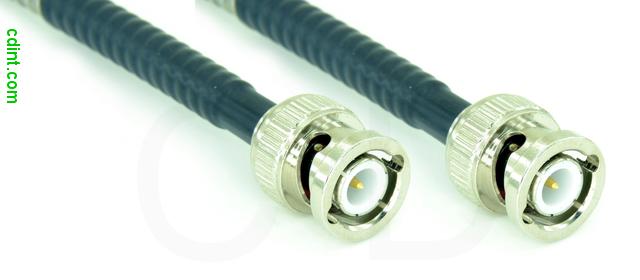

BB-316A-50 is a RG316 armored 50 foot 50 ohm (15.24 meter) coax cable assembly with
a BNC connector
on one end and
a BNC connector
on the other
end.
About Armored Cable
This cable is armored in 1/4" stainless steel flexible conduit. This
armor provides crush and abrasion protection, resistance to
high-temperature transients such as welding spatter, as well as a
dense layer of electrical shielding. The armor is bonded to the
connectors on either end, providing tensile and shear strength at the
join between cable and connector.
Armored cable is useful for harsh environments including field and
flightline use in petroleum, aerospace and automotive manufacturing,
machine and industrial shops, as well as NDT. These cables perform
well in the mud, on oil rigs, and on factory floors -- no worries
about them being stepped on or run over.
Armored cable retains much of its flexibility, supporting a minimum
bend radius of approximately 1.25".
About 50 ohm cable assemblies
This cable assembly has a
characteristic
impedance of 50 ohms.
50 ohm coax cable, connectors, and adapters are commonly used in GPS
and wifi (802.11 wireless LAN) antennas, ham transceivers, and other
radio frequency (RF) analog and digital signaling, microwave, radar,
hi-fidelity professional audio, non-destructive testing (NDT), oil and
petroleum production, ultrasonic transducers, accelerometers, strain
gauges, and some professional video applications.
RG316 armored Specifications
The following are nominal values; if you have exact requirements that
need to be met for a given application, please contact us.
| Impedance | 50 ohms |
|---|
| Capacitance | 101.7 pF/meter (31.0 pF/foot) |
|---|
| Minimum Operating Temperature | -55 C (-67.0 F) |
|---|
| Maximum Operating Temperature | 200 C (392.0 F) |
|---|
| Jacket Diameter | 6.35 mm |
|---|
| Jacket Material | stainless steel |
|---|
| Core | stranded |
|---|
| Related | RG-316 |
|---|
We hi-pot test our cable assemblies for high-voltage breakdown
between core and braid. See About Hi-Pot
Testing for why this might matter to you, particularly for
physics or NDT applications. Caution: We make no claims as to the
safety of this product for high-voltage use. These voltages can
kill. Do not handle or approach any cable or conductor carrying
high voltage; this includes insulated cables, nearby metal parts,
water, and other conductive materials. Engineering and design for
safety in your application are your responsibility.
