Cables, Connectors, and Adapters
...for NDT, oil and petroleum production, transducers, accelerometers, RF, and other 50 ohm applications

You can buy cables at special prices online by clicking the "Add to Cart" buttons below (US customers only -- international customers please contact us for shipping costs). We use PayPal® for payment processing to ensure the security of your transactions. Complete your order by clicking the "View Cart" button at the top or bottom of this page. All prices are subject to change without notice.

We also sell bare connectors such as SMA plug, SMA jack, SMA jack RP, TNC RP, SMB plug, SMB plug right angle, SMC/Subvis plug, 10-32 Microdot, 10-32 Microdot right angle, Lemo 1, Lemo 00, and Lemo 00 right angle for RG-174/U or RG-316 cables; BNC, BNC right angle, and Lemo 1 for RG-58 or RG-174/U cables.

If you need any custom length cables, quantity discount, or have other special requests, please contact us at cdint@cdint.com.

Cable Features:

  • Our cables are hi-pot (high voltage) tested to 1500V (low noise to 500V). See About Hi-Pot Testing for why this might matter to you.
  • Belden 9239 low noise RG174 cable available upon request.
  • RoHS compliance available upon request.
  • Please refer to the discount table below for your cable orders. The quantity is your overall purchase not individual items.
  • Resellers are welcome.
  • We offer Single Cables, Dual Cables, Adapters/Couplers, and Connectors

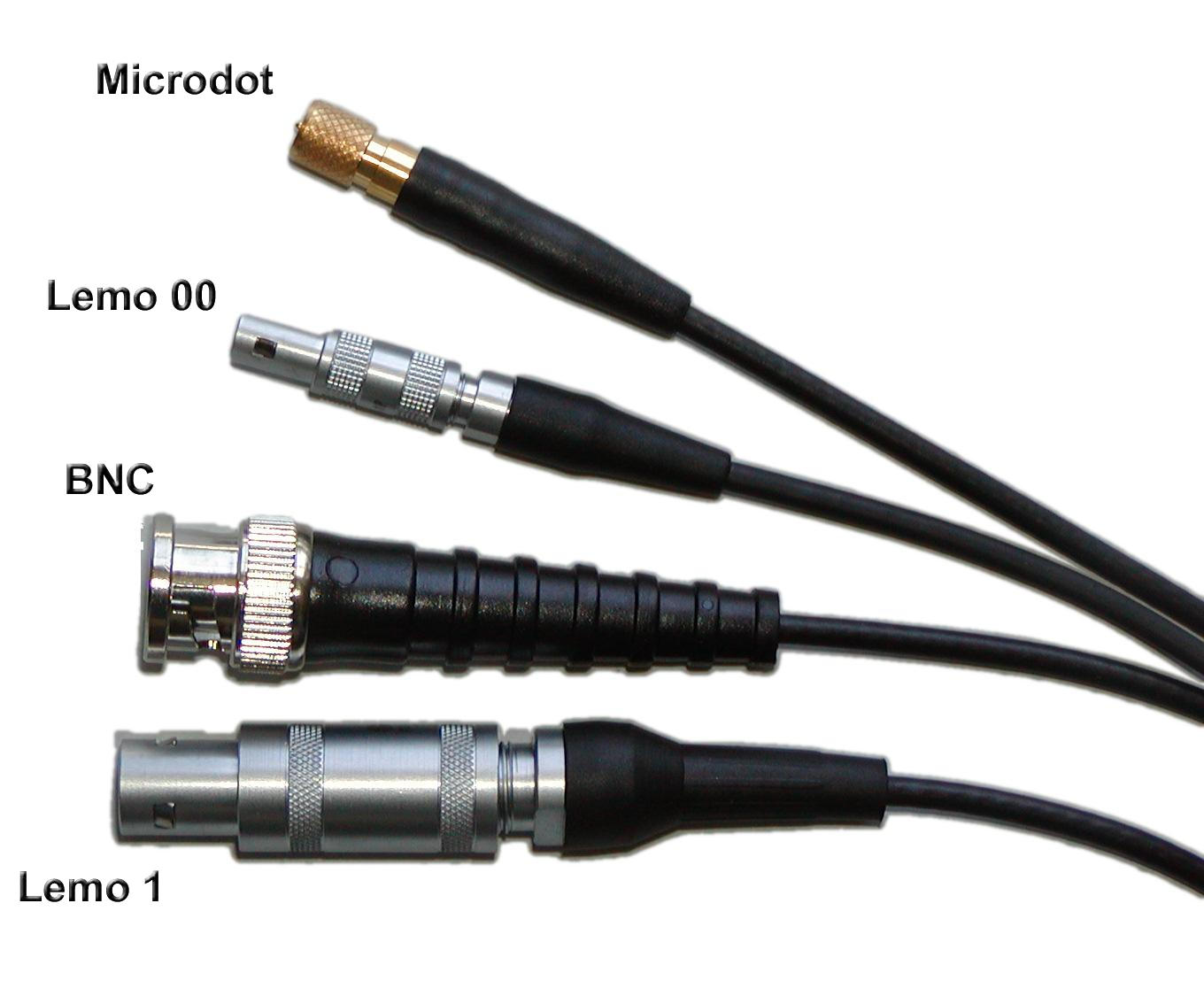

Click on the image to see a larger view
10-32 Microdot Connector Detail
These connector threads are the same as those on a 10-32 machine screw. Practitioners in the NDT industry, including the petroleum oil and gas production segment, tend to call these "Microdot" connectors. But there were many connector models, of various shapes and sizes, made under the Microdot name. (Microdot Inc. has since been acquired by Tyco.) Several industries and applications tend to instead call these "10-32" connectors; you will often find this designation on velocity sensors and accelerometers, force sensors, acoustic sensors, various piezoelectric applications, radio (RF) and WiFi tranceivers, and professional audio lapel mikes, to name a few.
Quantity Discount Table
10-49: 10%
50-99: 15%
100 or above: 20%


Single Cables

Description Length (ft) Cable Type Part Numbers Sale Price Order
BNC/Microdot (10-32) 6.0 RG174 BM-174-6 $19
BNC/Microdot (10-32) 3.0 RG174 BM-174-3 $17
BNC/Microdot (10-32) 12.0 RG174 BM-174-12 $27
BNC right angle (90 degree)/Microdot (10-32) 6.0 RG174 B90M-174-6 $29
BNC/BNC 6.0 RG174 BB-174-6 $15
BNC/BNC 3.0 RG174 BB-174-3 $13
BNC/BNC 12.0 RG174 BB-174-12 $19
BNC/BNC 6.0 RG58 BB-58-6 $15
BNC/BNC 3.0 RG58 BB-58-3 $13
BNC/BNC 12.0 RG58 BB-58-12 $19
BNC/Microdot (10-32) right angle (90 degree) 6.0 RG174 BM-174-6-90 $35
BNC/Microdot (10-32) right angle (90 degree) 2.0 RG174 BM-174-2-90 $22
BNC/Subvis 6.0 RG174 BS-174-6 $30
BNC/Lemo 1 6.0 RG174 BL1-174-6 $35
BNC Female/Lemo 1 6.0 RG174 BFL1-174-6 $36
BNC/Lemo 00 6.0 RG174 BL00-174-6 $22
BNC/Lemo 00 90 degree 6.0 RG174 BL00-174-6-90 $40
Lemo 1/Lemo 1 6.0 RG174 LL1-174-6 $36
Lemo 1/Lemo 1 6.0 RG58 LL1-58-6 $36
Lemo 1/Lemo 00 6.0 RG174 L1L00-174-6 $29
Lemo 1/Microdot (10-32) 6.0 RG174 L1M-174-6 $29
Lemo 00/Microdot (10-32) 6.0 RG174 L00M-174-6 $29
Lemo 00/Lemo 00 6.0 RG174 LL00-174-6 $29
BNC/UHF 6.0 RG58 BU-58-6 $29
Lemo 1/UHF 6.0 RG58 L1U-58-6 $40
UHF/UHF 6.0 RG58 UU-58-6 $30
UHF/Microdot (10-32) 6.0 RG174 UM-174-6 $30
SMA male/SMA male 6.0 RG174 SMA-174-6 $19
SMA male/SMA female 6.0 RG174 SMA-SMAF-174-6 $28
SMA female RP (reverse)/TNC RP (reverse) 0.5 RG174 SMAFR-TNCR-174-6 $17

Dual Cables

Description Length (ft) Cable Type Part Numbers Sale Price Order
Dual BNC/Microdot (10-32) 6.0 RG174 DBM-174-6 $40
Dual Lemo 1/Microdot (10-32) 6.0 RG174 DL1M-174-6 $59
Dual Lemo 00/Microdot (10-32) 6.0 RG174 DL00M-174-6 $59
Dual Lemo 00/Lemo 00 6.0 RG174 DLL00-174-6 $59
Dual Lemo 1/Lemo 00 6.0 RG174 DL1L00-174-6 $59
Dual BNC/Lemo 00 6.0 RG174 DBL00-174-6 $45

Adapters/Couplers

Description Part Numbers Sale Price Order
BNC male to Microdot (10-32) female BM-MF $26
BNC female to Microdot (10-32) female BF-MF $26
BNC female to Lemo 00 male BF-L00M $29
BNC male to Lemo 00 female BM-L00F $29
BNC female to Lemo 00 female BF-L00F $38
Lemo 00 female to Lemo 00 female coupler L00F-L00F $29
T-plug Lemo 00 female to Lemo 00 female to Lemo 00 male TL00F-L00M $39
BNC female to BNC female coupler BF-BF $5

Connectors

Description Part Numbers Sale Price Order
BNC male plug for RG-174/U B-174 $1.95
BNC male plug for RG-58 B-58 $1.95
BNC male plug for RG-174/U with strain relief B-174-S $2.95
BNC female for RG-174/U BF-174 $2.99
Microdot (10-32) male plug for RG-174/U gold plated MC-174 $7.00
Microdot (10-32) male plug right angle for RG-174/U gold plated MC90-174 $7.00
Lemo 1 male plug for RG-174/U L1-174 $9.95
Lemo 1 male plug for RG-58/U L1-58 $9.95
Lemo 00 male plug for RG-174/U L00-174 $5.95
SMA male plug for RG-174/U gold plated SMA-174 $3.95
SMA female jack for RG-174/U gold plated SMAF-174 $3.95
SMA jack reverse polarity for RG-174/U gold plated SMAF-RP-174 $4.95
SMA jack right angle (90 degree) for RG-174/U SMAF90-174 $4.95
SMB plug right angle (90 degree) for RG-174/U gold plated SMB90-174 $4.95
SMB plug for RG-174/U gold plated SMB-174 $4.95
TNC plug reverse polarity for RG-174/U TNC-RP-174 $4.95
SMC/Subvis plug for RG-174/U SMC-174 $4.99

About Hi-Pot Testing

Today's ultrasonic applications demand more of transducer cables than ever before. Composite materials, air-coupled scanning, and other high power domains can cause pulser-receiver equipment to drive transducers with energies that can easily exceed 1000 volts. But the Microdot, Lemo, and BNC connectors made for RG174 cable, not to mention the cable itself, typically are designed and rated by manufacturers for as little as 30 volts. Too often the result is arcing, insulation breakdown, poor signal performance, and in most cases an eventual total cable failure, as carbon traces build up and cause a short between conductors.

In order to prevent this from happening to you, we test connectors and coaxial cable to destruction when selecting parts suppliers. During assembly, we use special techniques and materials that we've evolved over time to improve the voltage-carrying capacity of those parts. Before shipping, we hi-pot test each and every cable assembly we build, making sure it can withstand 1500 volts of potential between core and shield, end-to-end, including connectors. Not all make it -- it's our most demanding test. Yet even with this added cost in our manufacturing process, we still ship some of the least-expensive cables in the industry, and we're content knowing that these cables will perform better in the field.
